Acoem AT-400
The AT-400 Shaft Alignment System is a state-of-the-art solution for precision machinery alignment. With 2-axis PSD alignment sensors, dual sweep, and dual multipoint methods, it ensures accurate alignment over a 65 feet (20 meter) measuring distance. Featuring the user-friendly GuideU™ interface, cloud connectivity, and a lifetime warranty, the AT-400 is Acoem’s most comprehensive and user-centric alignment system.
DualXL PSD Detectors
The 20x20mm² M9 & S9 position-sensitive detectors simultaneously measure horizontal and vertical measurements and offer a high resolution of 0.001mm. The M9 & S9 are currently the thinnest 2-axis sensor on the market, are lightweight (.67lb), and feature a 20-meter (65 ft) measurement range. Thoughtfully designed sliding covers for the detectors and charging ports ensure the product stays protected when stored or not in use.
Dual Measurement
Our 2-axis sensors record measurements from both the moveable and stationary coupling side to supply the data within our alignment programs.
When we say
“Two is Better Than One”
we mean it.
DUAL SWEEP
With the Dual Sweep method, you can quickly and easily obtain readings with a single rotation of the shaft.
DUAL MULTIPOINT
The Dual Multipoint method enables you to record measurements from multiple points from any position on the rotation.
DUAL VIEW
The Dual View feature enables the real-time visualisation throughout the entire alignment process in both horizontal and vertical directions simultaneously.
GuideU™ Interface
GuideU™ is the next generation of 3D shaft alignment graphical user interface – our patented, customizable, icon-driven and color-coded display system that makes measuring, aligning, and reporting simple. Featuring realistic machine graphics and animated help screens, the risk of human error is minimized to take the guesswork out of shaft alignment.
Cloud Connectivity
Supplied with cloud connectivity, the AT-400 allows users to effortlessly upload alignment reports to Acoem’s proprietary web portal, ensuring seamless data management and easy access to alignment records for analysis and comparison. With just a tap of a button, technicians can send their alignment reports directly to the portal, streamlining their process of documentation.
Lifetime Warranty Benefit
The AT-400 comes with the added assurance of a lifetime warranty, providing customers with unmatched peace of mind and long-term reliability. This commitment to quality reflects Acoem’s confidence in the durability and performance of this cutting-edge alignment system.
Acoem AT-400
The AT-400 Shaft Alignment System is a state-of-the-art solution for precision machinery alignment.
With 2-axis PSD alignment sensors, dual sweep, and dual multipoint methods, it ensures accurate alignment over a 65 feet (20 meter) measuring distance.
Featuring the user-friendly GuideU™ interface, cloud connectivity, and a lifetime warranty, the AT-400 is Acoem’s most comprehensive and user-centric alignment system to date.
DualXL PSD Detectors
The 20x20mm² M9 & S9 position-sensitive detectors simultaneously measure horizontal and vertical measurements and offer a high resolution of 0.001mm. The M9 & S9 are currently the thinnest 2-axis sensor on the market, are lightweight (.67lb), and feature a 20-meter (65 ft) measurement range. Thoughtfully designed sliding covers for the detectors and charging ports ensure the product stays protected when stored or not in use.
Dual Measurement
Our 2-axis sensors record measurements from both the moveable and stationary coupling side to supply the data within our alignment programs.
DUAL SWEEP
With the Dual Sweep method, you can quickly and easily obtain readings with a single rotation of the shaft.
DUAL MULTIPOINT
The Dual Multipoint method enables you to record measurements from multiple points from any position on the rotation.
DUAL VIEW
The Dual View feature enables the real-time visualisation throughout the entire alignment process in both horizontal and vertical directions simultaneously.
GuideU™ Interface
GuideU™ is the next generation of 3D shaft alignment graphical user interface – our patented, customizable, icon-driven and color-coded display system that makes measuring, aligning, and reporting simple.
Cloud Connectivity
Supplied with cloud connectivity, the AT-400 allows users to effortlessly upload alignment reports to Acoem’s proprietary web portal, ensuring seamless data management and easy access to alignment records for analysis and comparison.
Lifetime Warranty Benefit
The AT-400 comes with the added assurance of a lifetime warranty, providing customers with unmatched peace of mind and long-term reliability.

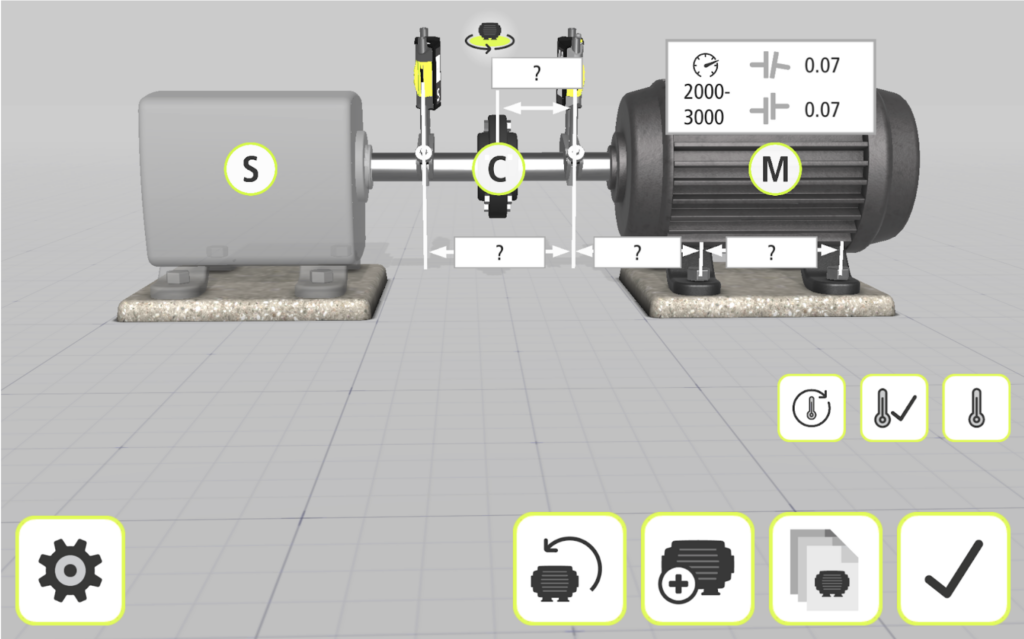

Measurement Programs
Measurement Programs
Horizontal Shaft Alignment
Vertical Shaft Alignment
Determine and correct the relative position of two vertically/flange mounted machines that are connected, such as a motor and a pump, so that the rotational centers of the shafts are collinear.
Flatness
Using the Acoem T21 when paired with the M9 sensor, the deviation in distance between the laser plane and the measurement object can be measured in one or more positions.
Horizontal Shaft Alignment
Determine and correct the relative position of two horizontally mounted machines that are connected, so that the rotational centers of the shafts are collinear.
Vertical Shaft Alignment
Determine and correct the relative position of two vertically/flange mounted machines that are connected, such as a motor and a pump, so that the rotational centers of the shafts are collinear.
Flatness
The flatness measurement program uses a laser plane as reference. The deviation in distance between the laser plane and the measurement object is measured in one or more positions using the Acoem T21 flatness sensor paired with the M9 sensor as the receiver.
SoftCheck™
Check if there is a soft foot condition to verify if the motor is not resting firmly on all its feet.
target values
Once you have determined the machine’s thermal expansion, this program will allow you to pre-set target values prior to starting your alignment work.
Spacer Shaft Alignment
For machines driven by spacer shafts, or membrane couplings, this specialized program will guide the user through the entire alignment process.
SoftCheck™
Check if there is a soft foot condition to verify if the motor is not resting firmly on all its feet.
target values
Once you have determined the machine’s thermal expansion, this program will allow you to pre-set target values prior to starting your alignment work.
Spacer Shaft Alignment
For machines driven by spacer shafts (or membrane couplings), this specialized program will guide the user through the alignment process.
Measurement Methods
The Dual Sweep method automates the measurement recording during a sweep of the shafts, providing a convenient way to assess alignment on coupled machines. By recording numerous points, a precise result is ensured. The recording of data is stopped manually by the user.
Measurement Methods
The Dual Sweep method automates the measurement recording during a sweep of the shafts, providing a convenient way to assess alignment on coupled machines. By recording numerous points, a precise result is ensured. The recording of data is stopped manually by the user.
This measurement method is similar to the classic Dual Sweep method, but with one key distinction: Data recording halts automatically when shaft rotation ceases.
The Dual Multipoint method enables measurement initiation from any position on the rotation, allowing recording of multiple points for optimized calculations. Ideal for uncoupled shafts, non-rotatable shafts, sleeve bearings or journal bearings.
Similar to the classic Multipoint method, this measurement method records automated measurements for greater convenience.
In the Tripoint method, the alignment condition can be calculated by recording three points while rotating the shaft at least 60°. In this method, all points are recorded manually by the user.
This method seamlessly incorporates the Tripoint approach, offering the added advantage of fully automated measurements throughout the process.
In the Clock method, machinery positions are calculated by taking three points with 180° of rotation.
Interface Features
The AT-400 interface is designed to make the user experience hassle-free as well as maximize user productivity, facilitate intuitive reporting, and ensure a consistent user experience across all measurements.
GuideU™
Navigate through our GuideU™ interface designed to automatically guide the user through the alignment process.
VertiZontal™
Save time by aligning machines in horizontal and vertical directions in only one move utilizing Acoem’s VertiZontal™ feature.
FeetLock™
Get better automatic guidance for base-bound or bolt-bound machines with the FeetLock™ function.
Dual View
For large machines, Dual View enables real-time alignment visualization in both horizontal and vertical directions simultaneously.
True Live™
Get the position of both the shafts in real time with Acoem’s True Live™ feature.
Multiple Feet
To ensure proper alignment, the Multiple Feet function is useful for machines with more than two pairs of feet.
Camera Access
Take pictures of your machine to document your machine and/or setup within your alignment report.
PDF Report
Instantly generate an automatic PDF report to document your alignment work.
Interface Features
The AT-400 interface is designed to make the user experience hassle-free as well as maximize user productivity, facilitate intuitive reporting, and ensure a consistent user experience across all measurements.
GuideU™
Navigate through our GuideU™ interface designed to automatically guide the user through the alignment process.
VertiZontal™
Save time by aligning machines in horizontal and vertical directions in only one move utilizing Acoem’s VertiZontal™ feature.
FeetLock™
Get better automatic guidance for base-bound or bolt-bound machines with the FeetLock™ function.
Dual View
For large machines, Dual View enables real-time alignment visualization in both horizontal and vertical directions simultaneously.
True Live™
Get the position of both the shafts in real time with Acoem’s True Live™ feature.
Multiple Feet
To ensure proper alignment, the Multiple Feet function is useful for machines with more than two pairs of feet.
Camera Access
Take pictures of your machine to document your machine and/or setup within your alignment report.
PDF Report
Instantly generate an automatic PDF report to document your alignment work.
What's Included
Acoem AT Display Unit
Acoem S9 Alignment Sensor
Acoem M9 Alignment Sensor
V-Bracket Complete x2
Quick Guide AT
USB-Cable A-Mini B 2m (6.5 ft)
Chain 8mm (0.3 in) 60 Links
(L=970mm (38.2 in))
Power Supply 4 USB-Ports 5 VDC
Magnetic V-Brackets x2
Extension Fixture 49mm (1.93 in)
Magnetic Base On-Off
Tape Measure (16.5 in)
Acoem T21*
Angled Universal Tool x2
Acoem USB
Rod Kit
*Included with AT-400 Ultimate
Acoem AT Display Unit
Acoem S9 Alignment Sensor
Acoem M9 Alignment Sensor
V-Bracket Complete x2
Quick Guide AT
USB-Cable A-Mini B 2m (6.5 ft)
Chain 8mm (0.3 in) 60 Links
(L=970mm (38.2 in))
Power Supply 4 USB-Ports 5 VDC
Magnetic V-Brackets x2
Extension Fixture 49mm (1.93 in)
Magnetic Base On-Off
Tape Measure (16.5 in)
Acoem T21*
Angled Universal Tool x2
Acoem USB
Rod Kit
*Included with AT-400 Ultimate
AT-400 Technical Datasheet
AT-400 Technical Datasheet
M9 & S9 Sensors | |
|---|---|
Hardware Type | M9 1-1216, S9 1-1217
|
Physical
| |
Housing Material | Anodized Aluminum frame and high impact ABS plastic. |
Weight | M9: 10.8 oz (306 g)
S9: 10.8 oz (306 g)
|
Dimensions | TD9: 3.9 in x 3.0 in x 1.7 in (100mm x 77.3mm x 43mm)
|
Environment | |
Operating Temperature
| 14 to 122 °F (-10 to 50 °C)
|
Storage Temperature
| -4 to 158 °F (-20 to 70 °C)
|
Long Term Storage Room Temperature
| 64 to 82 °F (18 to 28 °C)
|
Battery Charging Temperature
| 32 to 104 °F (0 to 40 °C)
|
Relative Humidity
| 10 – 90 %
|
Environmental Protection
| IP65 (Dust tight and protected against water jets)
|
Sensing Technology | |
Laser
| 650 nm class II diode laser
|
Laser Power
| < 1 mW
|
Measurement Distance
| 2.48 in to 65.6 ft (63mm to 20m)
|
Detector
| 2-axis PSD
|
Detector Size
| 0.79 in x 0.79 in (20mm x 20mm)
|
Detector Resolution
| 1 μm
|
Measurement Accuracy
| 1% ± 3 μm
|
Signal Processing
| Digital signal processing with sidespot rejection, edge detection, ambient light elimination and anti-vibration mode.
|
Ambient Light Protection
| Optical Filtering and Ambient Light Signal Rejection.
|
Inclinometer
| Dual High Performance MEMS inclinometers
|
Inclinometer Resolution
| 0.01 °
|
Inclinometer Accuracy
| ±0.1 °
|
Gyroscope
| 6-Axis MEMS Inertial Motion Sensor w/ Drift Compensation and Automatic Field Calibration
|
Gyroscope Accuracy
| ±1 °
|
Battery | |
|---|---|
Type | High Performance Li-ion Rechargeable Battery or External Power
|
Operating Time
| 8 Hours Continuous Use (Measuring)
|
Charging
| 8 Hours
|
LED Indicators
| Unit State, Laser Transmission and 5 Battery Status Indicators with Instant Battery Check
|
Communication | |
Wireless Communication
| Bluetooth Low Energy (Bluetooth 5)
|
Communication Range
| 33 ft (10m)
|
Connectors
| 1 USB Mini Port (IP67)
|
Acoem Alignment Display Unit | |
Display
| Sunlight Readable, Capacitive Multi-Touch Display, Super-Hardened Gorilla Glass, Rain and Glove Mode
|
Display Size | 8 in
|
Ruggedness Rating
| IP67 (Including Ports), Waterproof and Dust-Tight
|
Operating Temperature
| -4°F to 140°F (-20°C to 60°C)
|
