Item # 100-AT100
AT-100
Laser Shaft Alignment Tool
Horizontal Alignment Application

Align with Simplicity
The AT-100 is a shaft alignment tool built by and for the user. Controlled by a rugged tablet, the system guides individuals through the alignment process with an intuitive application that couples with two wireless laser heads. Within minutes, the user can perform an alignment and save a report straight to their device.

Navigate Your Alignments with Confidence
Acoem’s Horizontal Alignment application was designed to take the mess out of aligning machines. The app utilizes our GuideU™ interface, which automatically guides the operator through 5 essential steps that take the guesswork out of alignment.

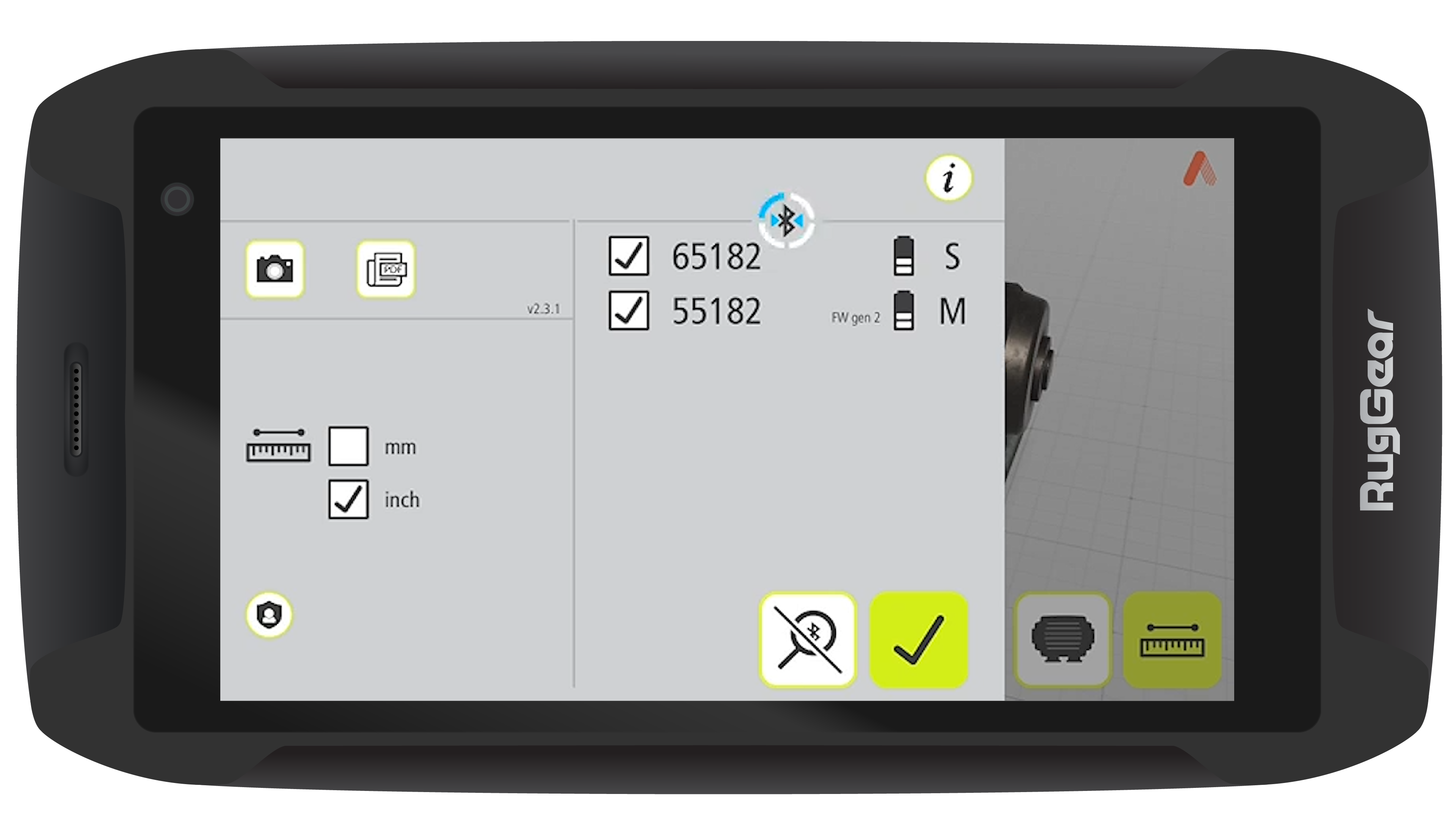

After mounting the movable and stationary sensor to the machine shaft, connect them wirelessly to the Horizontal Alignment App using Bluetooth®.
To setup an alignment, measure four simple dimensions pertaining to your setup and select the run speed of your machine.
Once three simple measurements are recorded with the laser sensors, the user will make the provided adjustments to align the machine vertically and horizontally.

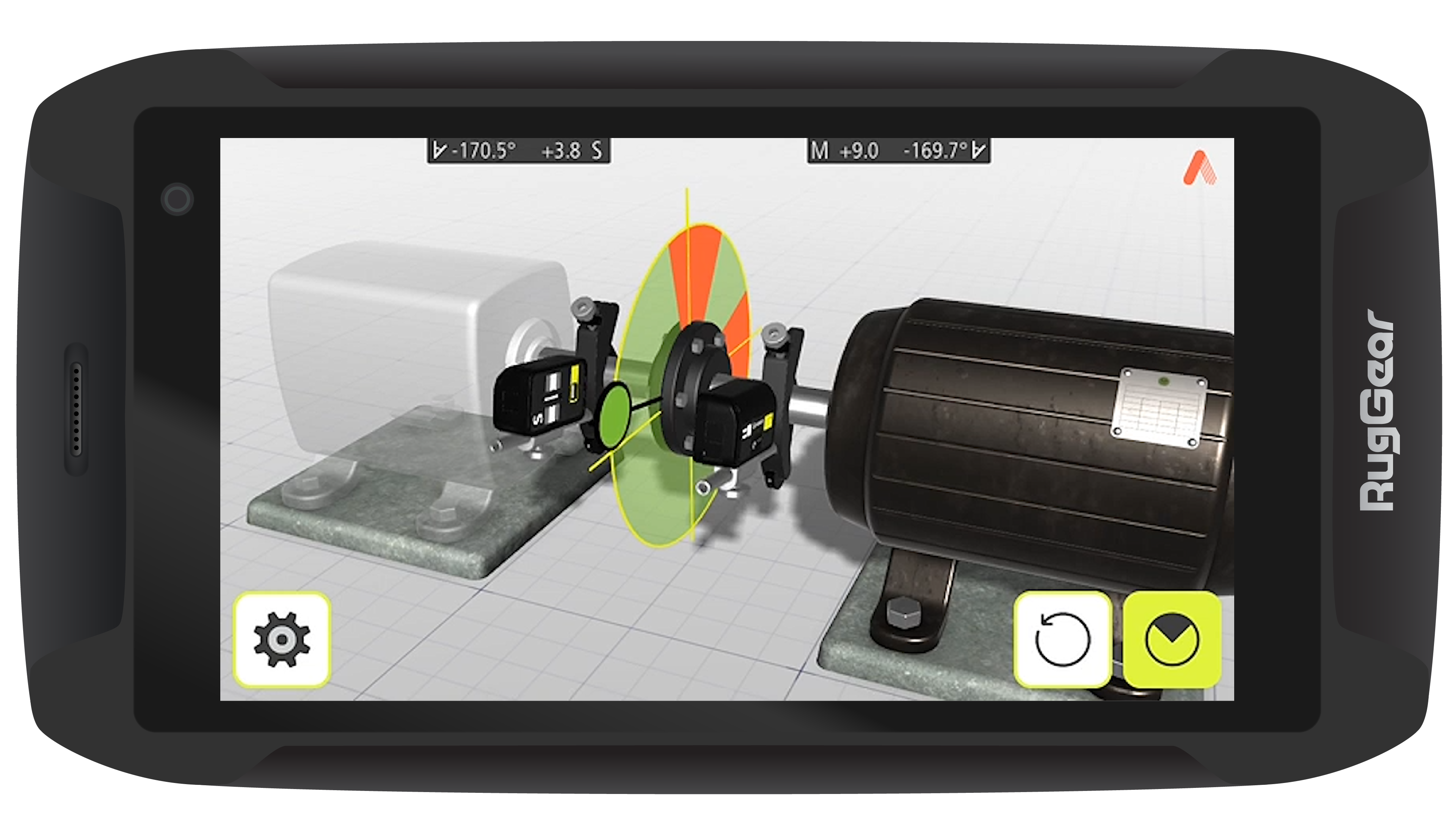

Now that corrections have been made, one more pass at taking measurements with the sensors will supply the user with new results to ensure that the machine is in alignment.
Now that the machine is in alignment, document your results with the click of a button to save a PDF report of the measurement.

- What's Included
