- Horizontal AlignmentMeasures and helps correct misalignment while dual sensors maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
- Vertical AlignmentSame power and ease of use as the Horizontal Alignment program. The vertical alignment program is used when aligning flanged-mounted machines.
- Verti-ZontalAllows for the vertical and horizontal adjustments to be made together in one pass, saving valuable time and ensuring accuracy the first time around.
- Machine TrainMachine Train routine simplifies the complexity of aligning multiple units with connecting shafts.
- Spacer ShaftThe Spacer Shaft program simplifies spacer shaft alignment by showing both ends of the spacer shaft coupling with an angle/angle display.
- OmniViewChanges the on-screen orientation to match what the user is actually seeing, tracking the user’s position relative to the machine being aligned.
- Full VGA 6.5″ color display, TFT-LCD backlit, sunlight readable, with wide angle viewing technology
- M3 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- S3 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- Custom-made fixtures for Siemens turbines
- Rod extension kit
- NXA extension fixture
- Angled Universal Rod tools (2)
- Magnetic base for mounting on large diameter shafts
- External power supply NXA built into carrying case

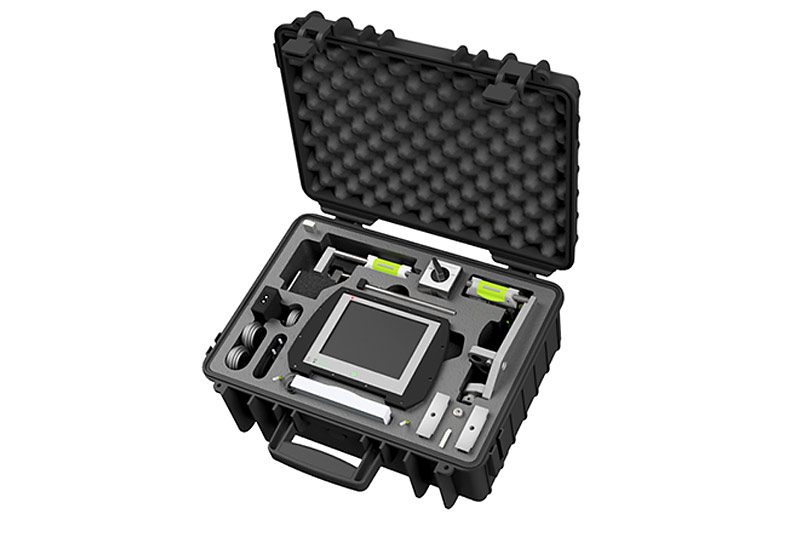

- Carrying case – IP-65, high impact ABS
- NXA tape measure
- USB stick
- Manuals – NXA
- Lifetime warranty standard
The Fixturlaser NXA Pro is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA Pro to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
The same power and ease of use found in the horizontal alignment program can be found in the vertical alignment program. The vertical alignment program is used when aligning flanged-mounted machines. The gyroscopes in the NXA Pro’s sensors allow the system to accurately measure the angles using the Tripoint Method of measurement, an industry first!
The NXA Pro’s machine train routine simplifies the complexity of aligning multiple units with connecting shafts. The software includes a “minimal moves” function which identifies the best reference machine to minimize the number of moves required to complete the alignment.
With spacer shafts there are two power planes of transmission that need to be aligned to the correct tolerances. The NXA Pro spacer shaft program simplifies the process showing both ends of the spacer shaft coupling with an angle/angle display. The alignment is completed using the Verti-Zontal™ move.
Softcheck™ checks if there is a soft foot condition, i.e. when the motor is not resting firmly on all its feet.
This program allows the user to test alternate solutions in situations where the movable machine is base bound or bolt bound.
This program calculates the appropriate target values for an alignment based on the machine’s hot condition and ambient condition. The utility retrieves two saved shaft alignment measurements — one in the machine’s cold, or ambient condition and one in the hot condition — and then calculates the appropriate target values. Those values can be used the next time to ensure proper alignment at running conditions.
Allows the system to compensate for pre-determined alignment targets. The user can establish targets using this function and then go directly to shaft alignment.
The NXA Pro’s data management function. Measurements can be organized in folders and subfolders. Single measurements and/or complete data structures can be copied to USB stick.
Machine Defined Data
A set of machine configuration templates for storing data for individual machines.
Opens a window for activating or deactivating OmniView, the feature that changes the on-screen orientation to match what the user is actually seeing, tracking the user’s position relative to the machine being aligned.
Allows the user to modify the sampling time of the sensor readings. Also offers the ability to run a repeatability test to determine if the vibration from nearby machines is affecting the data quality of the alignment.
Allows the user to adjust the resolution, dependent upon how precise the alignment needs to be.
We train customers to use the Verti-Zontal alignment process, taking the final measurement with the sensors at 3:00 or 9:00 taking live reading. But if the situation doesn’t allow easily positioning the sensors at 3:00 or 9:00 the Extended Alignment utility can address the problem. Extended Alignment allows for live readings as long as the sensors are within +/- 45 degrees of the 3:00 or 9:00 position. Extended Alignment can also be used when making live vertical adjustments of machines mounted on adjustable chocks.
