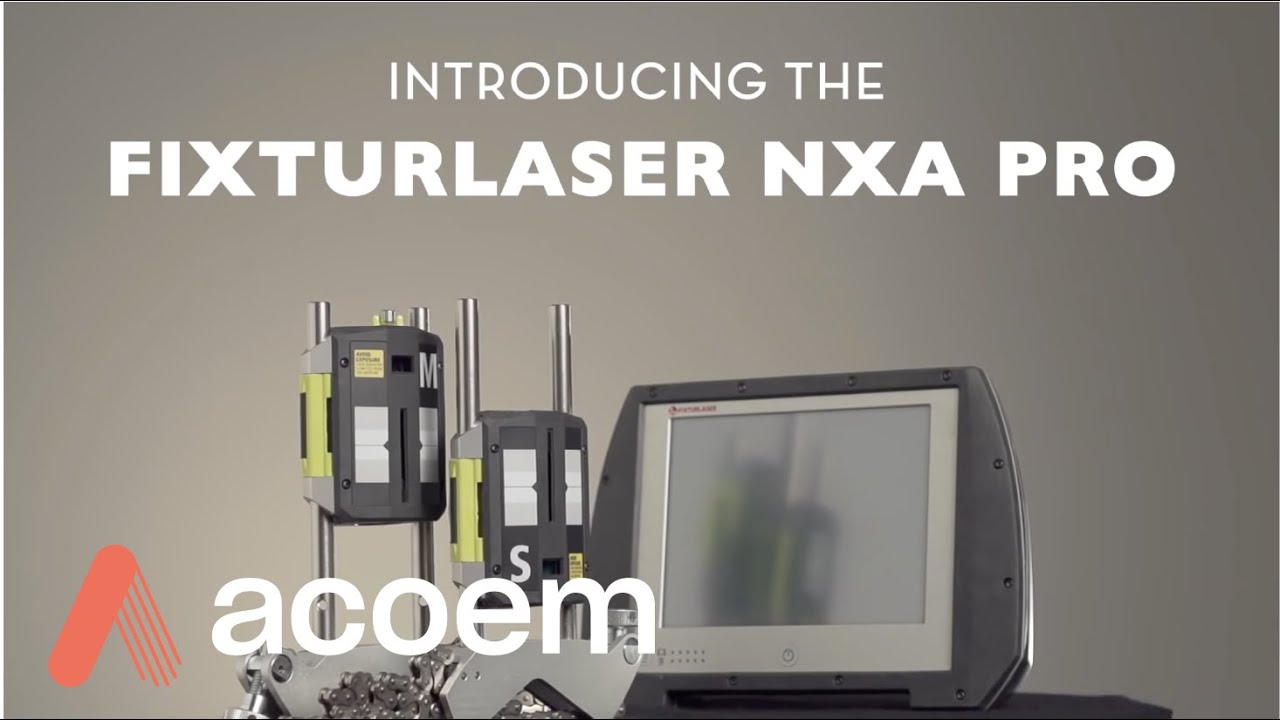

NXA Ultimate

Shaft Alignment

• Horizontal Machines

  The NXA Ultimate is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process. The benefit of this “true positon sensing” is that it allows the user to complete the alignment using the Verti-Zontal™ compound move, adjusting in both the vertical and horizontal planes without remeasuring between moves. A Verti-Zontal™ alignment is a great time saver since alignments can be completed in just one or two tries. The NXA Ultimate also comes with a number of utility programs to make the alignment process easier. These include Softcheck™ to control for soft foot conditions, FeetLock™ to deal with base and bolt bound situations, HotCheck™ to calculate the difference between measurements taken in a cold state versus a hot condition, and Target Values, which automatically adjusts the readings to compensate for pre-determined alignment targets based on thermal growth or dynamic movement data.

• Vertical Machines

  The same power and ease of use found of the horizontal alignment program can be found in the vertical alignment program. The vertical alignment program is used when aligning flanged-mounted machines.

• Machine Train

  The NXA’s machine train routine simplifies the complexity of aligning multiple units with connecting shafts. The software includes a “minimal moves” function which identifies the best reference machine to minimize the number of moves required to complete the alignment.

• Spacer Shaft

  With spacer shafts there are two power planes of transmission that need to be aligned to the correct tolerances. The NXA spacer shaft program simplifies the process showing both ends of the spacer shaft coupling with an angle/angle display. The alignment is completed using the Verti-Zontal™ move.

• Circular Flatness

  The circular flatness program measure flatness at different diameters. It us used when measuring the flatness across flanged connections.

• Rectangular Flatness

  The rectangular flatness program measures in a grid pattern. It is used when measuring the flatness across bases, foundations, etc.

• Straightness

  With the straightness application, straightness can be measured in two axes. The laser beam is used as reference and the deviation in distance between the laser beam and the measurement object is measured in two or more positions, with the use of the receiver.
