Who Decides Your Shaft Alignment Tolerances?

When you opt to use your own shaft alignment tolerances instead of using the industry standards, how do you decide what to use? The subject of shaft alignment tolerances has been touched on before but a couple interesting discussions have taken place recently during training classes.

The Fixturlaser XAs and GOs allow you the option to input your own tolerances instead of using the industry standards. That’s a great convenience–but we need to understand what these tolerances mean. Some folks confuse tolerance for target. The target is our end result–what our goal is–how we want the machines positioned at ambient. The tolerance is the permitted variation around the target. Generally speaking, the faster the equipment operates, the tighter the alignment tolerances–the closer to zero variation we want. Below are two examples of how tolerances can be misinterpreted.

XA shaft alignment tolerance 0

The first example is from an ambitious XA Pro customer last week who might have his expectations set a bit high. Now I know I just said ‘closer to zero’ but both the angular and offset tolerance values are set to 0.0. This means no deviation–no acceptable window around our target. Is this practical? (That’s not a rhetorical question–I want some feedback!!)


This lead to a great discussion on the zone of good alignment and how we can actually use that variation to our advantage while making corrections.

XA shaft alignment tolerance vac pumpThis next set of tolerances was seen on a customer’s XA Ultimate a couple weeks ago. When asked how those numbers were determined, they said that’s what the pump OEM had recommended. For a 3600 rpm application, this just isn’t acceptable. Compare the highlighted values to the 3600 rpm values: we know we need to get the angle at least 5X better and the offset at least 4X better.

Why such a big difference? Have you, our humble readers, experienced something similar from your pump suppliers? If you are using an outside service provider, are you specifying the alignment targets and tolerances?

One could almost argue it doesn’t really matter since precision shaft alignments can usually be completed very quickly with the right shaft alignment tool and training. We see most of them completed well within spec–or even a tighter one without much additional effort. But when seeking information about a specialty piece of equipment or if the alignment has to be documented correctly, we should know how to make an informed decision that’s in the best interest of equipment reliability.

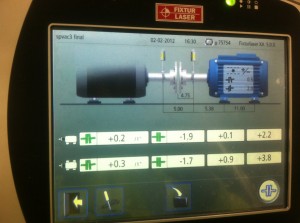

Case in point, the same XA Ultimate customer decided to use the 3600 rpm tolerance on the XA and not the one from the OEM. It just made sense to them to go with a more accepted alignment tolerance and leave it in the best condition possible. It certainly doesn’t harm the equipment to use a tighter tolerance. How did it go? This is what was texted to me after they completed the job.

vacuum pump shaft alignment results

Share Blog Post


  1. Dragos Sopoglu on December 5, 2013 at 4:55 am

    Hello Mr.Patrick,

    I work in a wind farm for the O&M department in Romania.We have GE turbines with a rated power of up to 2,75 MW. The generator can build speeds of up to 1850 RPM.Can you tell me what are the tollerances regarding this RPM?
    Because in the O&M manual from the supplier the tolerances are too big for the RPM(Angular+0.08 and offset 0.7mm)Sorry for my lack of Imperial Units.
    I am waiting for your response.
    Best regards,

    Dragos Sopoglu
    O&M Specialist CEZ Wind Farm

  2. Stan Riddle on December 7, 2013 at 9:16 am

    Dragos, VibrAlign recommends using GE’s alignment tolerances. The values you quoted are typical for this machine. These offset and angularity values compensate for thermal and dynamic changes in the machine when it reaches its operating condition.

  3. alfonso rivera on October 16, 2014 at 12:06 am

    please can you give me a some advice regarding the Tolerance of Alignment of Pumps & motor.

  4. Stan Riddle on October 21, 2014 at 8:02 pm

    Please check our articles on the blog -www.thealignmentblog.com. You may find some very good information there.

  5. MAURICIO DURAN on November 9, 2014 at 2:57 pm

    what standard which regulates the practice of alignment axes determined such tolerances and alignment shims maximum number……

  6. Brad Case on November 19, 2014 at 10:09 pm

    Mauricio, The American Petroleum Institute (API) has shaft alignment standards (API 610) that are used in the petrochemical industry, and I believe the Hydraulic Institute has developed shaft alignment standards as well.

    For general industrial applications most aligners us the tolerance table in their alignment tool or tolerances, if specified, by OEM’s for their equipment.

  7. Sherif Mounir on May 11, 2016 at 3:44 pm

    i would like to know the tolerances for vertical shaft alignment

  8. Patrick Lawrence on May 17, 2016 at 12:14 am

    Sherif, without any other details on the equipment, I would use the same tolerances as for a horizontal alignment.

    Also, search this blog for more info on vertical alignments. There are quite a few articles.
