Ah, yes, the “simple” shaft alignment that somehow eats up your whole afternoon.
On paper, shaft alignment sounds straightforward. You just align two rotating shafts so their centers are perfectly collinear. No big deal, right? But once you’re standing in front of a stubborn machine with a laser alignment tool in hand and the clock ticking, reality hits hard. That “quick” job becomes anything but.
So, what exactly turns a textbook task into a real-world challenge?
Machine Design: When the Unusual Becomes the Difficult

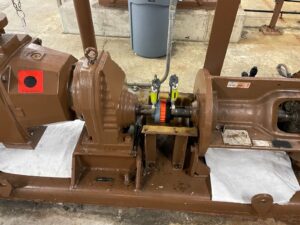

Not all machines are created equal. You may walk up to a standard motor-pump set and think, “I’ve got this.” But then you find yourself dealing with non-standard machine types—gearboxes, cooling towers, vertical machines, or misbehaving rolling mills—and suddenly the alignment process becomes far more complex.
On top of that, not having the correct brackets or adapters for your laser alignment system can derail progress fast. Misfit brackets lead to unstable setups, skewed readings, and wasted time. The key here is preparation: knowing your machine, understanding its setup, and having the right accessories at your disposal.
External Forces Like Pipe Strain, Gravity, and Size
Even with ideal alignment practices, external forces can throw your readings into chaos. One of the most common culprits is pipe strain, when the attached piping exerts force on the machine and alters its position once bolts are loosened. If not identified and corrected, this strain can ruin even the best alignment.
Gravity and machine size also come into play. Large or heavy equipment can shift subtly as you loosen mounting bolts. Machines may “settle” differently when they’re hot versus cold. And if you’re aligning vertical machines? Now you’re juggling axial movement, gravity-induced sag, and bracket stability all at once.
Maintenance Habits Matter More Than You Think
The truth is, no amount of alignment wizardry can compensate for poor maintenance. Loose bolts, dirty bases, and corroded shims are alignment killers. Misalignment often isn’t the root problem; it’s a symptom of larger maintenance neglect.
Start with the basics: Clean your mounting surfaces. Inspect your bolts. Replace shims when they look sketchy. Preventive actions like these not only streamline your alignment jobs but extend machine life significantly.
Best Practices to Tame the Alignment Beast
So, how do you tame the so-called “simple” alignment job? It starts with a structured process and adherence to best practices:
- Pre-Alignment Checks: Before diving in, verify machine condition, coupling status, and existing alignment condition.
- Thermal Growth Consideration: Use manufacturer specs or dynamic measurement tools to account for expansion as machines heat up.
- Document Everything: From soft foot readings to final alignment results, keep a log. It’ll save you time down the line.
- Train Continuously: Even experienced technicians benefit from periodic training on new tools, updated software, and evolving techniques.
A Strong Reliability Program Makes All the Difference
At the end of the day, shaft alignment challenges don’t happen in a vacuum; they’re a reflection of your facility’s reliability culture. When alignment is treated as a critical step (not a box to check), machines run better, breakdowns decrease, and teams become more efficient.
Investing in reliability-centered maintenance (RCM) and precision maintenance programs pays off. When laser alignment is part of a bigger strategy, that “simple” job becomes more predictable—and a lot less painful.
Final Thoughts: It’s Not Just About the Lasers
Yes, lasers make alignment faster and more accurate, but even the best tools can’t overcome shortcuts, guesswork, or a lack of planning. Respect the process, understand the variables, and stay sharp.
Because in the world of rotating machinery, there’s no such thing as “just a quick alignment.”
